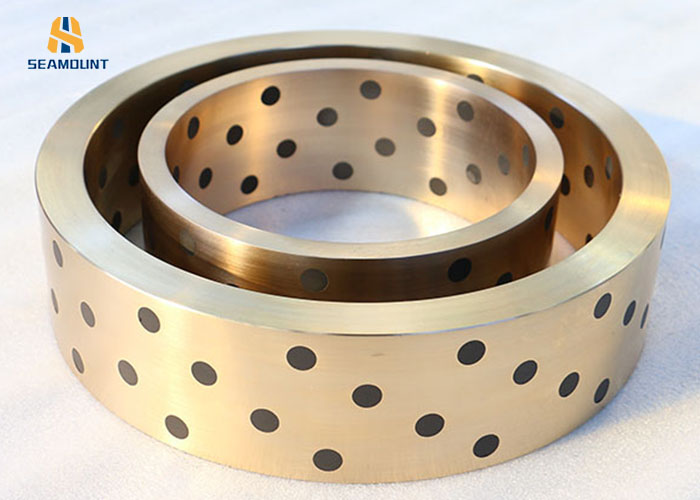

Centrifugal Cast C86300 Self-Lubricating Standard Graphite Copper Bearing

Product description

Graphite copper bushing is a self-lubricating bearing based on high-strength copper alloy. It processes holes on its working surface and fills solid lubricant in a certain proportion according to the working conditions. This kind of copper alloy inlaid solid lubricant bearing combines the high bearing capacity and wear resistance of copper alloy and the self-lubricating characteristics of solid lubricant, and does not need to be used for oil filling and maintenance in the use process, especially It is suitable for high load, high temperature, low speed and other parts that can not be oiled or difficult to form oil film.

Product Features

1. Solid lubricated bronze bearing is mainly made of copper alloy with HB > 60. The working surface of oil-free bearing with solid lubricant is specially drilled.

2. High strength bearing is suitable for medium load and medium speed operation. It can be used at high temperature with strong corrosion resistance. Our customers can choose according to the actual use

3. please provide the inner diameter, outer diameter and length of copper alloy bearing to select the part number.

5. Please provide the drawings required by the product for the specific size parameters.

Product specifications

Shape: round

Material: alloy steel, aluminum alloy

Grade: AISI, ASTM, DIN, JIS

Features: compact design, high strength, high quality, high finish

Finishing: polishing

Type: self-lubricating bearing, self-lubricating

Dimensions: 100-120mm, 20-40mm, 40-60mm, 60-80mm, 80-100mm

Application: industry, machinery

Accuracy class: best quality

Bore: 12 to 300 mm

Outside diameter: 20 to 450 mm

Brand name: setting

Standard: according to our standard, customized requirements

FAQ:

1. How to get a quotation?

Please send us drawings in igs, dwg, step etc. together with detailed PDF.

If you have any requirements, please note, and we could provide professional advice for your reference.

2. How to pay?

For small quantity, we could provide Paypal, Paypal commission will be added to the order.

For the big one, T/T is preferred.

4. How to ship?

For small quantity, we have cooperation with TNT, FEDEX, UPS etc

For big quantity, air or sea would be available for you to choose.

5. What about the packing details?

We attached our normal packing details.

If you have any special requirements, we would be willing to help.

6. What about the delivery time?

It would be 7-30 days normally for the parts to be ready and we had a system to ensure the time.

When you made your order, you would know.
