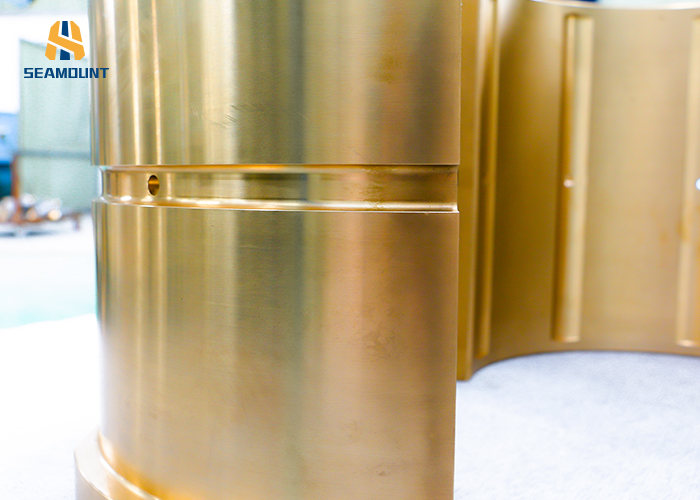

High Precision Bronze Split FlangeHalf Bearing Bush With Different Specifications

Product description

The bearing bush is the contact part between the sliding bearing and the shaft, which is very smooth. It is generally made of bronze, antifriction alloy and other wear-resistant materials. Under special circumstances, it can be made of wood, plastic or rubber. Also known as "bushing", the shape of the semi-circular cylindrical tile.

Product Name: 10-1 tin bronze bearing bush

● material brand: zqsn10-1

● casting method: centrifugal casting

Product category: high wear resistant copper bearing bush, flange copper bearing bush

● brand: ZCuSn10P1

● standard: GB / T 1176-1987

● chemical composition:

Copper Cu: others

SN: 9.0-11.5

Zinc Zn: ≤ 0.05 (impurity)

Lead Pb: ≤ 0.25 (impurity)

P: 0.5-1.0

Ni: ≤ 0.10 (impurity)

Aluminum al: ≤ 0.01 (impurity)

Iron Fe: ≤ 0.1 (impurity)

Manganese Mn: ≤ 0.05 (impurity)

Silicon Si: ≤ 0.02 (impurity)

Sb: ≤ 0.05 (impurity)

Sulfur s: ≤ 0.05 (impurity)

● mechanical properties:

Tensile strength σ B (MPA): ≥ 310

Yield strength σ (MPA): ≥ 110

Elongation δ 5 (%): ≥ 12

Hardness: ≥ 520hb (reference value)

● heat treatment specification: heating temperature 1188-1220 ℃, pouring temperature 1150-1200 ℃.

● casting method: centrifugal metal mold casting

Production Feature :

Why choose us:
1. Choose us, you don't have to worry about the capabilities of suppliers.
Our company is an enterprise with more than ten years of production experience and technical team. The annual output of the company is more than 5 million tons, and the products are exported to all countries in the world.
2.Advanced equipment
It has advanced production equipment in the industry, and can maintain and update in time, which solves the problem of production difficulty.
3.Our company is an enterprise with more than ten years of production experience and technical team. The annual output of the company is more than 5 million tons, and the products are exported to all countries in the world.
·4.Strong technology
Strong technology in the industry, able to better control theoretical knowledge, operation experience and skills
5.Exquisite workmanship
The products are highly processed and highly praised by customers. We are rated as high-quality suppliers and manufacturers

Instructions for inquiry:
1. Drawing: you only need to provide one of the drawing, drawing number, sketch and sample. (these are the premise of our service to you, and also the important standard to facilitate your acceptance of the workpiece after we do it well, so you must provide.)
2. Quantity: you need to customize the number of artifacts. (the more quantity, the more favorable price
3. Material: the material requirements of the workpiece; (is it a national standard or an enterprise standard or an export American Standard, please indicate that these will affect the price to a great extent!)
4.Duration: This is also an important information. If you need it urgently, it will increase the manufacturing cost. Generally, the manufacturing cycle of castings is 8 days

Xinxiang Haishan Machinery Co., Ltd. specializes in the production and processing of copper parts. Since 2008 has focused on the R & D and production of copper castings and CNC equipment.

The main products are copper bush, copper bush, copper nut, large-scale copper casting, flange copper bush, large-scale shaft sleeve, taper broken copper sleeve, excavator copper sleeve, ball mill copper sleeve, copper wire nut, reducer copper worm gear, crusher copper sleeve, Simmons copper sleeve, Sandvik copper sleeve, mining equipment copper accessories, etc. more than 20 series, hundreds of models, copper alloy products a production unit has Advanced processing and mechanical testing equipment, in the region has a strong technical force and reliable quality..

The company has established a complete and scientific quality management system, and a complete quality inspection system for component testing, mechanical performance testing, etc.

Xinxiang Haishan Machinery Co., Ltd. has a mature R & D team. With 20 years of production experience, it takes customers' needs as the starting point and midpoint of technical R & D to provide customers with the best and most efficient product solutions, and has won a number of national patents.

Our company is good at producing copper parts of crusher, with 7 years of production, casting and processing experience. It is a new manufacturer specializing in the production of customized cone broken copper sets in Henan Province. Its products are exported to Germany, Russia, the United States, Bulgaria, Japan and all over China, the quality and technology of our products are highly praised by customers all over the world.
