OEM Cnc Machined Flanged Bronze Bushings Customized Forged High Temp Bushings

Product description

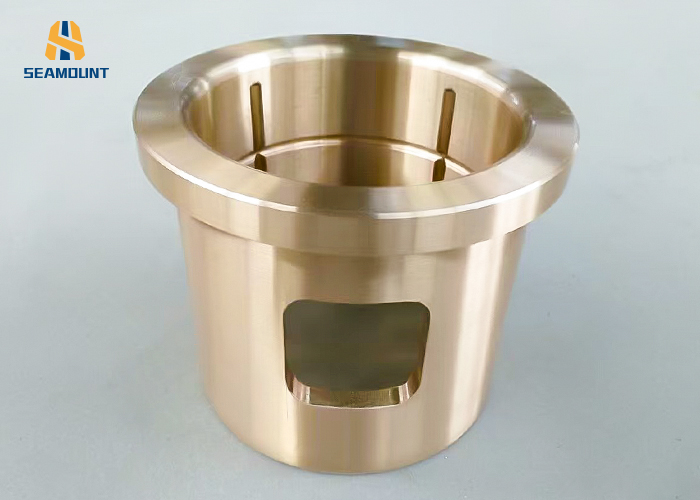

Flanged copper sleeve

It is a kind of bearing lubricated by oil gushing from oil groove. The product has the function of traditional tin bronze bearing. Because of the use of high-strength brass (zcuzn25al6), its HB hardness has been doubled. Therefore, the service life of the product in low-speed situation can be doubled than that of the general bronze sleeve, and its bearing pressure is large, so it can be used in heavy-duty situation. At present, the product is mainly used in the stress joint of excavator and large gear box.

Flanging copper sleeve has self-lubricating and non self-lubricating. There are flanging and non flanging for self-lubricating bearings.

Generally speaking, flanging sleeve and self-lubricating bearing belong to sliding bearing, which is their common point. Flanging is a kind of oil-free bushing. One end of flanging is flanged.

Flange connection is easy to use and can bear large pressure. Flange connection is widely used in industrial pipeline. In the home, the diameter of the pipe is small, and it is low pressure, and the flange connection is invisible. If in a boiler room or production site, there are flange connected pipes and equipment everywhere.

Generally speaking, the function of flange is to fix and seal the joint of pipe fittings.

Product details:

Product characteristics

The standard of flanging oil-free self-lubricating bearing is GB / T 12613

It is made up of four layers. The mixture of PTFE and fiber is 0.01-0.03mm, which can form a good transfer film to protect the grinding shaft and provide the self-lubricating property of the bearing. 2. The copper powder layer is 0.20-0.35mm, which has good bearing capacity and wear resistance, and good thermal conductivity can timely transfer the heat generated in the bearing operation process. The composite material can penetrate into the gap of copper powder ball and improve the bonding strength. 3. Low carbon steel provides good bearing capacity and heat transfer. 4. 0.002mm copper / tin electrodeposited layer for better corrosion resistance.

Xinxiang Haishan Machinery Co., Ltd. specializes in the production and processing of copper parts. Since 2008 has focused on the R & D and production of copper castings and CNC equipment.

The main products are copper bush, copper bush, copper nut, large-scale copper casting, flange copper bush, large-scale shaft sleeve, taper broken copper sleeve, excavator copper sleeve, ball mill copper sleeve, copper wire nut, reducer copper worm gear, crusher copper sleeve, Simmons copper sleeve, Sandvik copper sleeve, mining equipment copper accessories, etc. more than 20 series, hundreds of models, copper alloy products a production unit has Advanced processing and mechanical testing equipment, in the region has a strong technical force and reliable quality..

The company has established a complete and scientific quality management system, and a complete quality inspection system for component testing, mechanical performance testing, etc.

Xinxiang Haishan Machinery Co., Ltd. has a mature R & D team. With 20 years of production experience, it takes customers' needs as the starting point and midpoint of technical R & D to provide customers with the best and most efficient product solutions, and has won a number of national patents.

Our company is good at producing copper parts of crusher, with 7 years of production, casting and processing experience. It is a new manufacturer specializing in the production of customized cone broken copper sets in Henan Province. Its products are exported to Germany, Russia, the United States, Bulgaria, Japan and all over China, the quality and technology of our products are highly praised by customers all over the world.
