High Hardness Cone Crusher Spare Parts Tapered Bushing In Mining Equipment

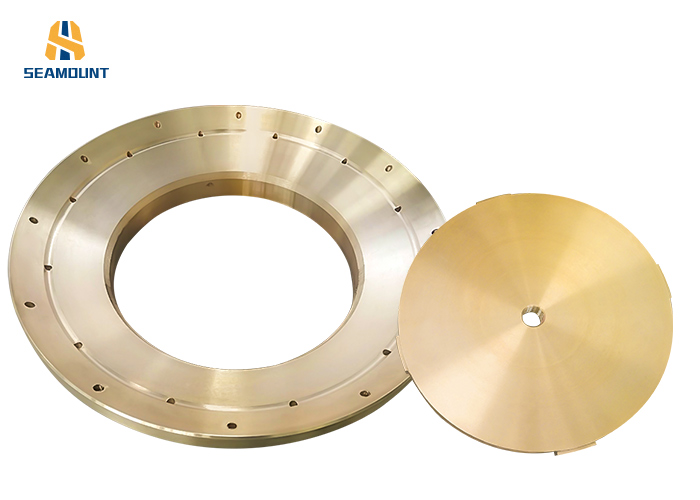

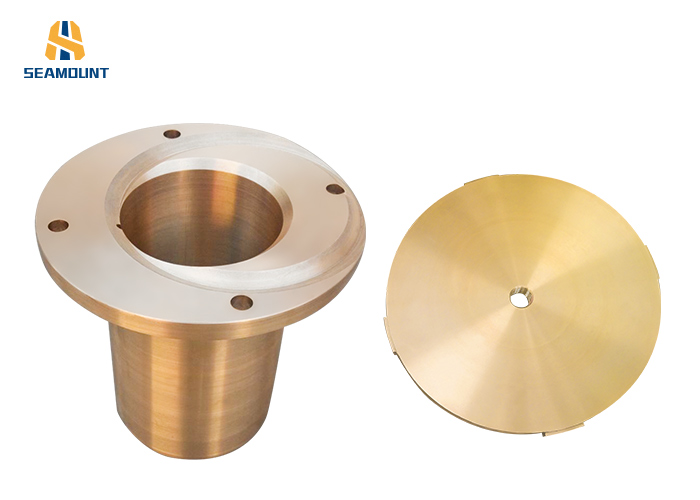

The copper casting on crusher generally includes straight sleeve of cone crusher, cone sleeve of crusher, bowl shaped bush of crusher, drive bearing of crusher, thrust plate under crusher, etc., which are widely used.

Production Feature :
1. High anti-wearing copper casting parts
2. Widely used in mining equipment, construction machine and metallurgy and other high loaded large machiner.
3. Strict casting processing control, make the tolerance less than 0.003m
4. Long working life and PRsmooth surface treatment

5. Long life and maintenance-free

6. No contaminant by oil or grease

Product description

The bowl liner is suitable for cone crusher, specifically for the bowl liner of spring type cone crusher. The bowl liner of spring cone crusher includes a body part, a bowl liner is arranged below the body part, a bowl liner is arranged between thebowl liner frame and the body part, the contact surface between the body part and the bowl liner is a spherical surface, the body part is also provided with two spherical rings outside the spherical surface, and a sealing ring is arranged between the body part and the bowl shaped frame, and the upper surface of the sealing ring is in contact with two spherical rings The lower part of the sealing ring is provided with a spring. The utility model adopts the way that the contact surface between the body part and the bowl liner is spherical, so that the dust will not enter into the interior when the utility model is used, the contact surface between the upper part of the sealing ring and the two rings of the body is on the same center with the spherical surface of the body, and it will not cause wear damage when rotating and swinging. After a certain amount of dry oil grease is added, the dust will be prevented from entering, so that the contact surface between the bowl type tile and the body is protected Keep clean.

Product Specification;

As the bearing of crusher bears all the load of the machine, it is required that the copper sleeve has good wear resistance and compression resistance. The copper sleeve of our crusher is generally made of lead bronze, which is mainly composed of copper, lead and tin. It has good machinability and lubricity. The higher the lead content, the better the lubricity.

Xinxiang Haishan Machinery Co., Ltd. specializes in the production and processing of copper parts. Since 2008 has focused on the R & D and production of copper castings and CNC equipment.

The main products are copper bush, copper bush, copper nut, large-scale copper casting, flange copper bush, large-scale shaft sleeve, taper broken copper sleeve, excavator copper sleeve, ball mill copper sleeve, copper wire nut, reducer copper worm gear, crusher copper sleeve, Simmons copper sleeve, Sandvik copper sleeve, mining equipment copper accessories, etc. more than 20 series, hundreds of models, copper alloy products a production unit has Advanced processing and mechanical testing equipment, in the region has a strong technical force and reliable quality..

The company has established a complete and scientific quality management system, and a complete quality inspection system for component testing, mechanical performance testing, etc.

Xinxiang Haishan Machinery Co., Ltd. has a mature R & D team. With 20 years of production experience, it takes customers' needs as the starting point and midpoint of technical R & D to provide customers with the best and most efficient product solutions, and has won a number of national patents.

Our company is good at producing copper parts of crusher, with 7 years of production, casting and processing experience. It is a new manufacturer specializing in the production of customized cone broken copper sets in Henan Province. Its products are exported to Germany, Russia, the United States, Bulgaria, Japan and all over China, the quality and technology of our products are highly praised by customers all over the world.
